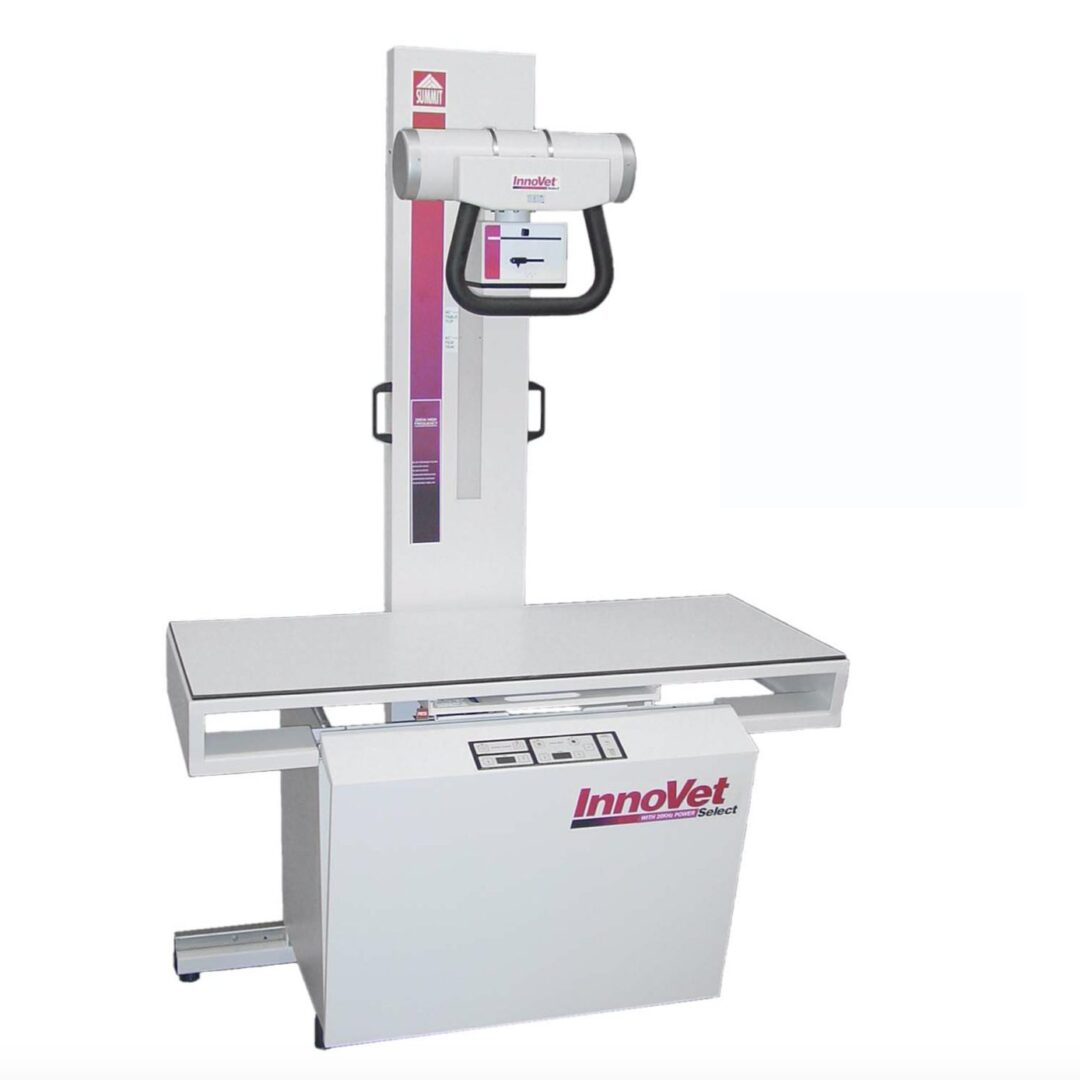

InnoVet Select HF
System Specifications
HIGH FREQUENCY GENERATOR
- 20 KHz High Frequency technology
- 30 kW rating
- Two-point technique selection (kVp, mAs)
- kVp range: 40 – 125, in 1 kV increments
- mA stations: 50s, 100s, 100L, 300L
- Digital kVp, mA, and mAs readout
- Tilt-out control panel
- Built-in tube protection and self diagnostics
- Adjustable volume, audible exposure signal
- Automatic generator “Shut Off” circuit
- Tilt-out control panel
- UL classified
TABLE / TUBESTAND
- Enclosed, integrated radiographic table
- Stationary table top: 53 in. x 24 in.
- Welded base construction
- Transformer mounting shelf
- Grid cabinet with Simplex cassette tray
- Grid cabinet / tubestand interlock
- Grid 8:1 ratio, 103 LPI
- Animal restraining device
- Angulation dial and deluxe operator handgrips
- Tubestand handles
X-RAY TUBE
- 1.0-2.0 mm F.S., 140,000 H.U. with 90° horns
CABLES
- 12 ft. high voltage cables with federal terminations
COLLIMATOR
- Manual collimator with light field and swivel mount
- Field light “on” time – selectable 30, 60, 90 or 120 seconds
- Radiation leakage well below Federal standards for human medical systems
